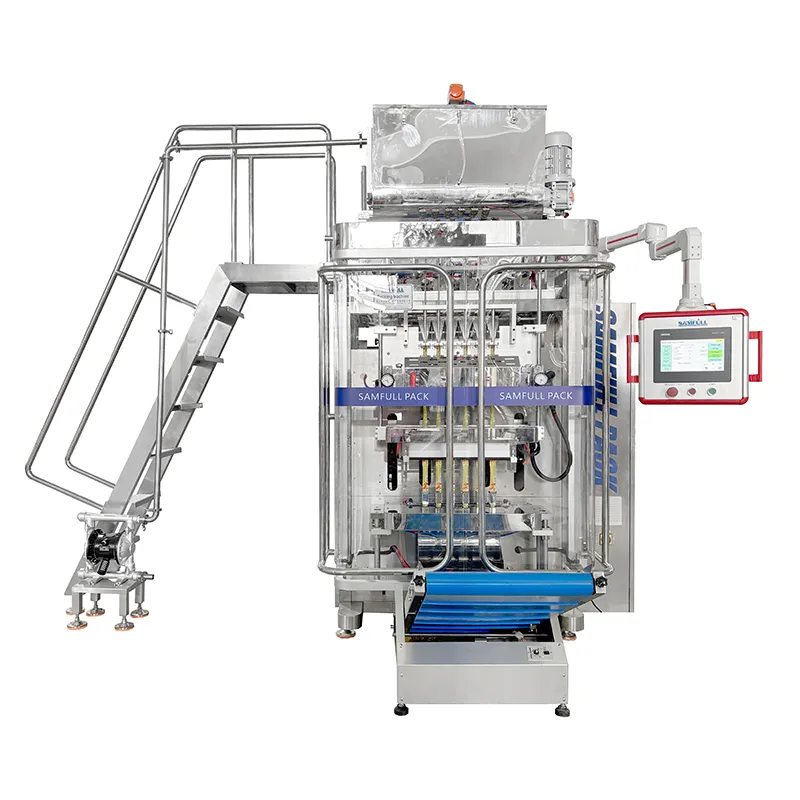

Irregular Shape Liquid Stick Pack Packaging Machine

Technical details

Item	SF2.0S	SF3.0S	SF4.0S
Track Number	4–10 (Track)	4–12 (Track)
Filling Method	Peristaltic pump / Piston pump / Ceramic pump
Capacity	30–55 cuts/min (According to the material condition)
Film Width & Thickness	Max: 520mm, 0.06–0.1mm	Max: 720mm, 0.06–0.1mm	Max: 820mm, 0.06–0.1mm
Sachet Size	L: 45–160mm W: 17–80mm (Customized bag length)
Sealing Type	Back sealing / Stick bag
Cutting Type	Flatten cutting / Zig zag cutting / Round cutting
Air Consumption & Voltage	0.8MPa, 0.8m³ / 4.5kW	0.8MPa, 0.8m³ / 5.5kW	0.8MPa, 0.8m³ / 6.5kW
Power	AC380V Three phase, AC220V Single phase, 50–60Hz
Dimension & Total Weight	L1400×W2000×H2400mm, 1200kg	L1500×W2000×H2500mm, 1300kg	L1600×W2100×H2600mm, 1400kg

Inquire Now

APPLICATIONS

Suit to liquid: sport gel, sauce, honey, medicinal liquid, cream, jelly, etc.

PACKAGING

BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

1.The equipment frame is made of 304 stainless steel, in line with food QS and pharmaceutical GMP hygiene standards;

2.Equipment with safety protection, in line with enterprise safety management requirements;

3.Imported-brand electrical components; Siemens PLC + touch screen control, high reliability and intelligence, high speed and high efficiency;

4.Independent temperature control system with accurate control; sealing is beautiful and smooth;

5.Film pulling system and color mark control can be adjusted via touch screen; easy deviation correction and incision deviation correction; recipes can be stored for quick product changeover;

6.4–12 lanes packing according to bag width; can connect with dosing line and automatic cartoning machine to achieve packing & cartoning automation production line.
