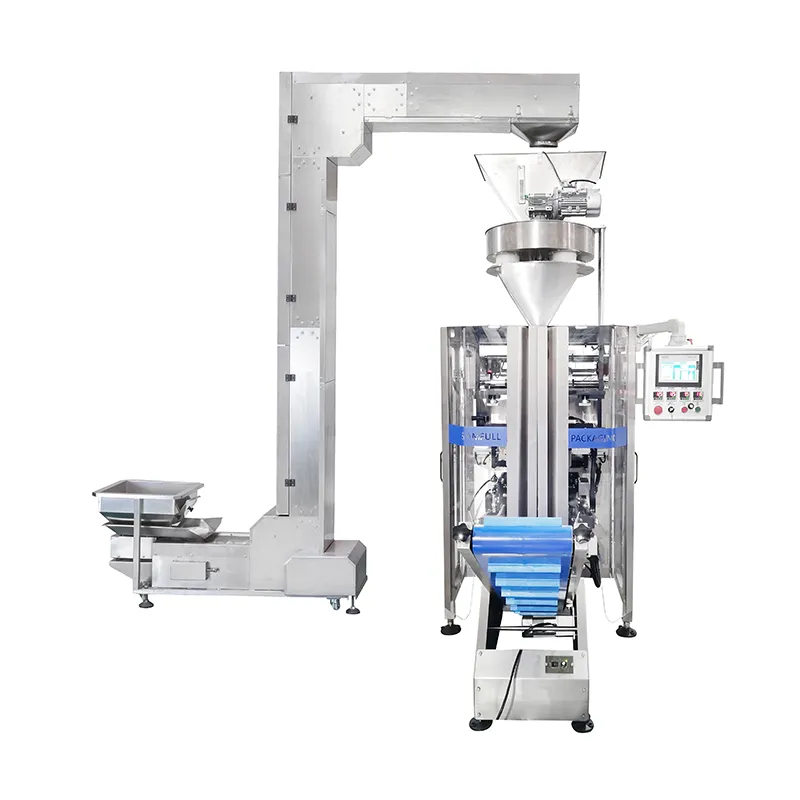

Granule VFFS Packing Machine
Technical details
| Model | SF-2.0T | SF-3.0T |
| Max Width Of Roll Film | ≤ 520 mm | ≤ 720 mm |
| Bag Sizes | Bag width: W 80–250 mm Bag length: L 100–400 mm | Bag width: W 150–350 mm Bag length: L 100–480 mm |
| Packing Speed | 20–45 bags/min | 20–30 bags/min |
| Packing Material | OPP/CPP, OPP/PE, PET/PE, PE | |
| Bag Type | Back sealing bag / Gusset bag / Quad seal bag | |
| Air Consumption | 6–8 kgf/cm², 0.6 m³/min | |
| Power And Voltage | AC380V, 3 phase, 50–60 Hz, 4.25 kW | AC380V, 3 phase, 50–60 Hz, 5.75 kW |
| Total Weight | 1000 kg | 1100 kg |
| Dimension | L3883 × W1215 × H3237 mm | L3980 × W2250 × H4200 mm |
APPLICATIONS
Apply for regular granular packing, such as sugar, soybean,rice,corn,sea salt,edible salt and plastic products,etc.
PACKAGING
BOPP/Polyethyiene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.
FUNCTIONAL FEATURES
1.The equipment frame is made of 304 stainless steel, which conforms to the food QS and pharmaceutical GMP health standards;
2.Equipped with safety protection, in line with the requirements of enterprise safety management;
3.Adopt independent temperature control system, temperature control is accurate, ensure the sealing is beautiful and smooth;
4.Servo motor film drawing, PLC control, touch screen control, automatic control ability of the whole machine, high reliability and intelligence, high speed, high efficiency;
5.Double belt film drawing, film drawing system and color code control system can be automatically adjusted by touch screen, simple operation for sealing and notching correction;
6.The touch screen can store a variety of packaging process parameters of different products, and can be used at any time without adjustment and replacing products;
7.The machine is equipped with fault display system, which can help troubleshoot in time and reduce the requirement for manual operation;
8.The whole set of equipment includes the whole packaging process system from material conveying, metering, printing, bag-making, filling, sealing, cutting and product conveying;
9.Pillow bag, pin bag, hanging hole bag and back seal bag made according to customer needs;
10.The machine adopts closed mechanism to prevent dust from entering the machine effectively.
